Blanks

Blanks out of carbon steel incl. electrical steel are supplied in all available grades and thicknesses of 0.4 to 16 mm as well as plates and trapezoidals plus rhomboids with widths of 35 to 2,100 mm width and lengths of 300 up to 12,000 mm and with shear angles of up to 35 degrees in perfect surface quality.

Our service includes stacking according to your requirements: a high-performance magnetic stacker allows finished blanks to be stacked in continuous or start-stop mode - in optimal quality exactly according to your needs.

Other dimensions are available on request.

Carbon steel incl. electrical steel

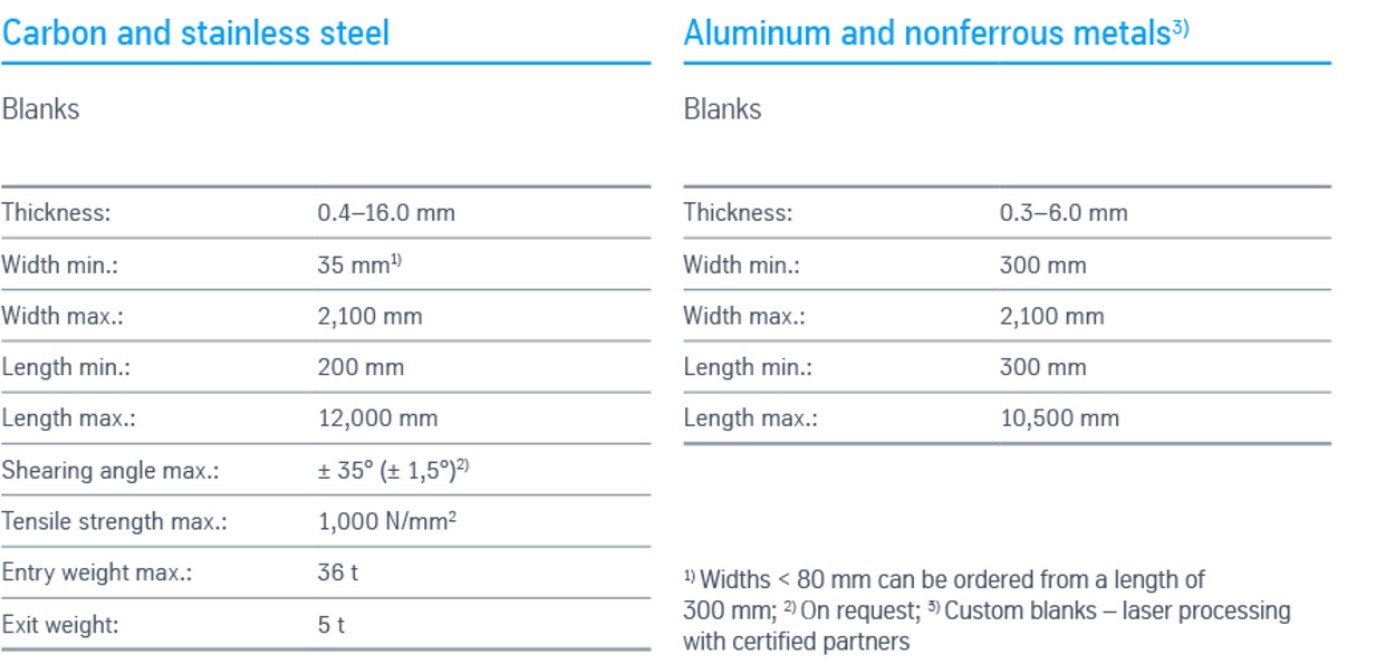

Choose from the following dimensions:

Blanks
Thickness:	0.4 - 16.0 mm
Width min.:	35 mm¹⁾
Width max.:	2,100 mm
Length min.:	200 mm
Length max.:	12,000 mm
Shearing angle max.:	± 35° (±1,5°)²⁾
Tensile strength max.:	1.200 N/mm²
Entry weight max.:	36 t
Exit weight max.:	10 t

1) Width < 80 mm can be ordered from a length of 300 mm.

2) On request

Processing options for stainless steel and aluminum

Discover our processing range for slit strips and sheets made of stainless steel and aluminum.
